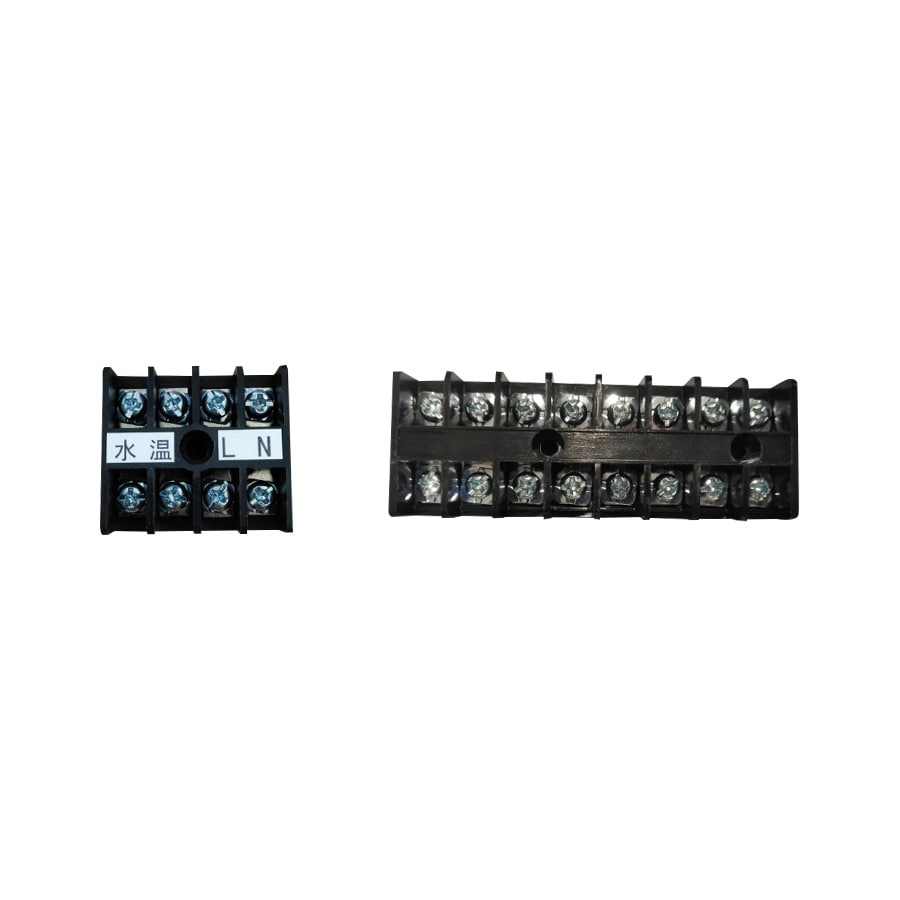

JXW-4PD/JX-W-8PA 600V 4mm² Double-Row Terminal Blocks

The JXW-4PD/JX-W-8PA series double-row terminal blocks are high-performance connectors designed for high-density electrical wiring. Their unique double-row structure enables efficient and neat wiring layout within limited space, making them particularly suitable for space-constrained control cabinets or equipment. With a rated voltage of up to 600V and an acceptable wire diameter of 4mm², these terminal blocks can safely and reliably handle the high-voltage and high-current connections required in industrial control, power systems, and various types of machinery, making them a key component for ensuring safe and reliable wiring.
The products excel in both electrical performance and structural design. Their high-quality flame-retardant insulation material offers excellent heat resistance and insulation properties, effectively preventing potential short circuits and fire risks. Furthermore, the metal conductive components are specially treated for corrosion resistance, and the robust screw-type crimping mechanism provides a strong clamping force, ensuring long-term, stable wire connections, even in vibration and harsh environments. The compact dimensions of 42mm in length, 37mm in width, and 21mm in height facilitate integration into a variety of equipment.
