Crimp Ferrule Terminal Overview

A crimp ferrule terminal — also called a wire ferrule, end sleeve, or bootlace terminal — is a small copper tube crimped onto the stripped end of a stranded wire to consolidate all strands into a single solid pin. When inserted into a screw-clamp or spring-clamp terminal block, the ferrule presents a clean, corrosion-resistant contact surface and prevents individual strands from fanning out, short-circuiting adjacent terminals, or loosening over time.

Fenglan manufactures crimp ferrules in electrolytic copper, tin-plated, with colour-coded PA nylon insulation collars in sizes from 0.25 mm² to 95 mm² (AWG 23 – 3/0). Twin-wire ferrules for two conductors in one terminal position are also available.

Related Products

Specification

Wire Range0.25 mm² – 95 mm² (AWG 23 – AWG 3/0)
Ferrule MaterialElectrolytic copper, tin-plated
Collar MaterialPA nylon, UL94 V-0 (insulated versions)
Pin Length6 mm / 8 mm / 10 mm / 12 mm / 14 mm / 18 mm
Rated VoltageUp to 1,000 V AC/DC
Operating Temperature–40 °C to +130 °C
Colour Coding (IEC 60228)White 0.25 mm², Orange 0.5 mm², Yellow 1.0 mm², Red 1.5 mm², Blue 2.5 mm², Grey 4.0 mm², Yellow-Green 6.0 mm²; larger sizes uninsulated
Twin FerruleAvailable for 2 × 0.5 mm² to 2 × 10 mm²
StandardsDIN 46228-1/4, UL 486A-486B, CE, RoHS
Crimping ToolCRIMPFOX or compatible quadrant-die ferrule crimper
MOQ500 pcs; 100 pcs sample

Application

  • Control panel and PLC wiring — terminating sensor, I/O, and power supply stranded wires into screw-clamp and spring-clamp terminal blocks for vibration-free long-term contact
  • DIN rail terminal assemblies — the standard pre-termination step before inserting wire into any push-in or cage-clamp terminal block
  • Switchgear and protection relays — secondary wiring to relay coils and CT/VT terminals where stray strands could cause misoperation
  • Frequency inverter and servo drive cabinets — control and signal wiring where loose strands near high-frequency bus bars could cause EMC issues
  • Building automation and BMS panels — neat, professional wiring of HVAC sensors, actuators, and fieldbus devices
  • Renewable energy inverters and battery systems — high-cycle-life ferrules on battery management wiring subject to thermal expansion
  • Marine and rolling-stock panels — vibration-resistant termination satisfying EN 50155 railway and Lloyd's marine wiring standards

Advantage

  • Eliminates stray strand risk — the tin-plated copper sleeve consolidates all strands into a single solid pin; no individual strand can escape to bridge an adjacent terminal and cause a short circuit
  • Consistent, repeatable crimp quality — quadrant-die ferrule crimpers apply uniform pressure on all four sides simultaneously, producing a square-section pin with precisely controlled dimensions every time
  • Corrosion-resistant tin plating — the tin layer over the copper sleeve prevents oxidation at the wire-to-terminal interface, maintaining low contact resistance throughout the service life without periodic re-tightening
  • IEC 60228 colour coding — internationally standardised collar colours let any engineer worldwide identify wire cross-section instantly, reducing wiring errors and simplifying troubleshooting
  • Twin ferrule for two-wire positions — twin ferrules allow two conductors to be terminated in a single terminal block position, halving terminal count in common-bus wiring without increasing space
  • Compatible with all major terminal brands — pin dimensions conform to DIN 46228-1/4, ensuring compatibility with Phoenix Contact, Weidmüller, Wago, and equivalent terminal blocks without modification

Payment & Shipping

We accept T/T (bank transfer), L/C at sight, PayPal (samples), and Western Union. A 30% deposit is required to confirm production, with the balance paid before shipment.

Standard lead time is 7–15 business days for regular orders; prototype samples ship within 3–5 days. We ship worldwide via DHL, FedEx, UPS, sea freight (FCL/LCL), and air freight. FOB Changzhou and CIF terms are both available. All goods are packed in export-standard cartons with foam padding or wooden crates for heavy items. A commercial invoice, packing list, and COA are provided with every shipment. For large OEM orders, customized packaging and private-label options are available upon request.

  • Q: Is a ferrule necessary if my terminal block already has a clamping plate?
  • A: Most terminal block manufacturers strongly recommend ferrules even with their own clamping systems. Without a ferrule, repeated tightening of the screw can sever individual strands, reducing the conductor cross-section and raising contact resistance. Ferrules also make re-termination far easier because the pin slides cleanly out of the terminal slot without snagging individual strands.
  • Q: What type of crimping tool produces the best ferrule crimp?
  • A: A quadrant-die (four-indent) ratchet crimper is the industry standard for ferrules. It applies four symmetrical indentations that produce a square cross-section pin, which provides maximum contact area in a rectangular terminal slot. Pliers-type or two-jaw crimpers produce round crimps that contact only two points in a rectangular slot — adequate for occasional use but not recommended for production wiring.
  • Q: Can I use a twin ferrule with spring-clamp (push-in) terminal blocks?
  • A: Twin ferrules are compatible with spring-clamp terminal blocks rated for the combined wire cross-section. For example, a 2 × 1.5 mm² twin ferrule (total 3 mm²) requires a terminal block rated for at least 4 mm² wire. Always check the terminal manufacturer's datasheet for the maximum pin dimensions accepted by the spring cage before specifying twin ferrules.
  • Q: How do I choose the correct ferrule pin length?
  • A: The pin length must match the insertion depth of the terminal block. Most DIN rail terminal blocks accept 8 mm or 10 mm pins. Check the terminal block datasheet for the rated wire insertion depth and select a ferrule with a pin length equal to or slightly shorter — a pin that bottoms out before the collar contacts the terminal face leaves a gap that can cause a high-resistance joint.
Changzhou Fenglan New Materials Co., Ltd.
Changzhou Fenglan New Materials Co., Ltd.
Changzhou Fenglan New Materials Co., Ltd.
Changzhou Fenglan New Materials Co., Ltd.
Changzhou Fenglan New Materials Co., Ltd.
Changzhou Fenglan New Materials Co., Ltd.
Changzhou Fenglan New Materials Co., Ltd.
Changzhou Fenglan New Materials Co., Ltd.
ABOUT US
Quality is Our Core Competitiveness
Changzhou Fenglan New Materials Co., Ltd.

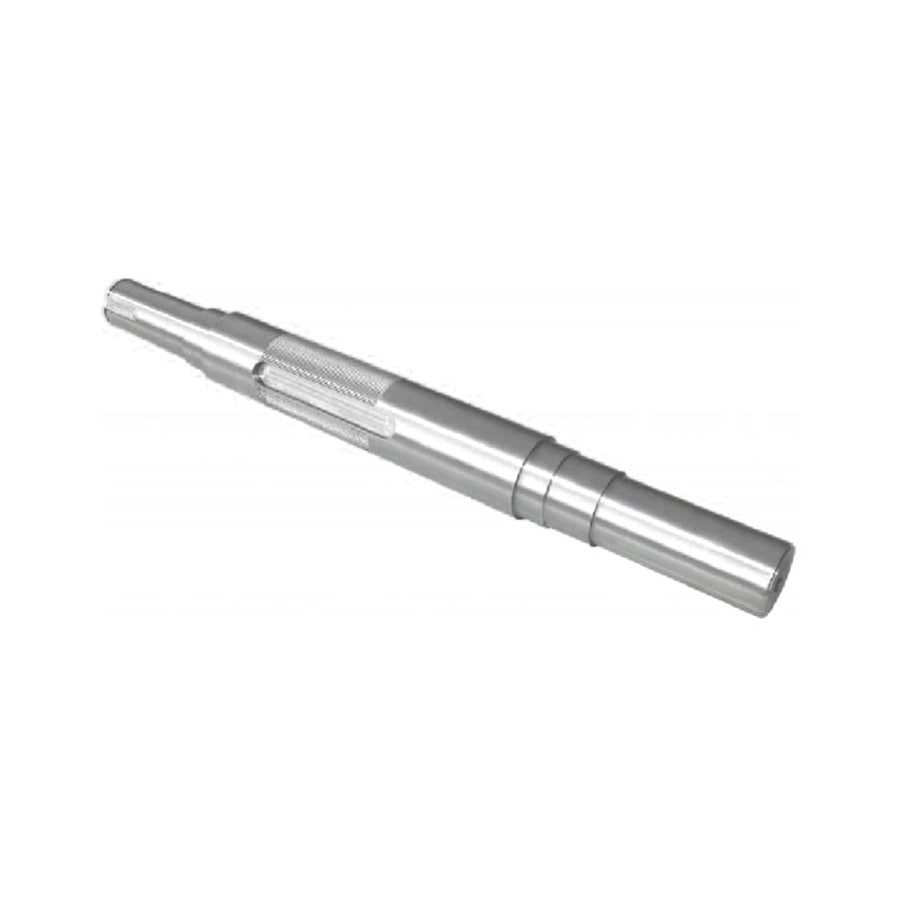

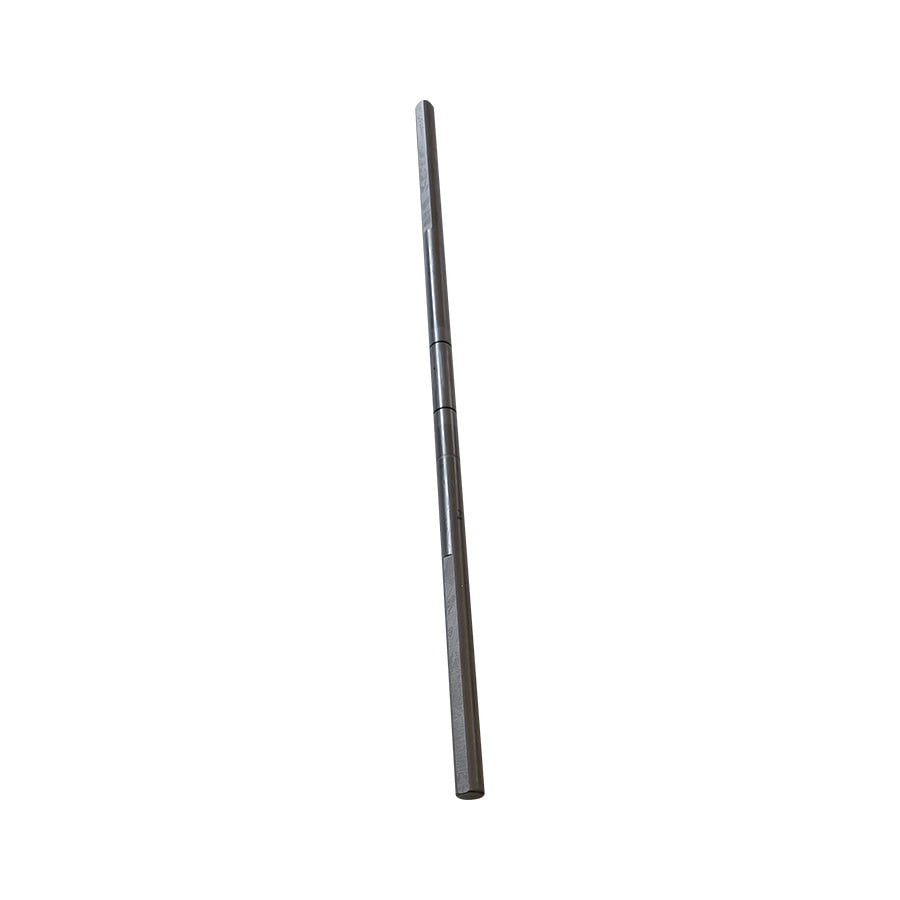

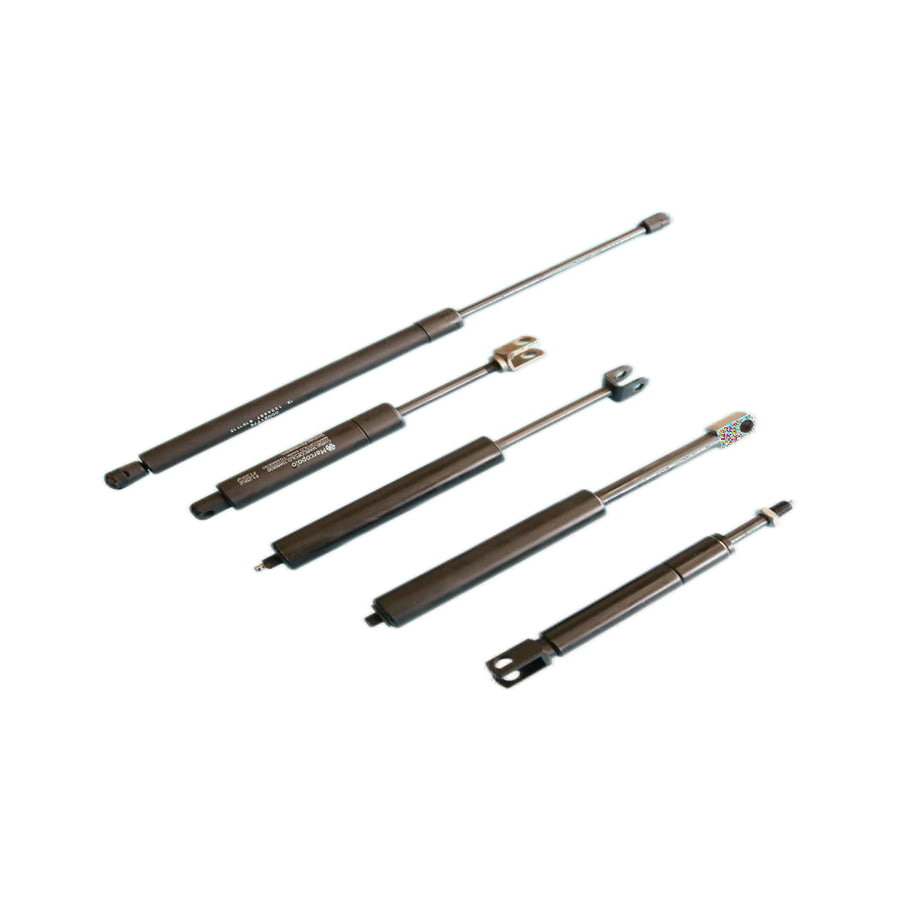

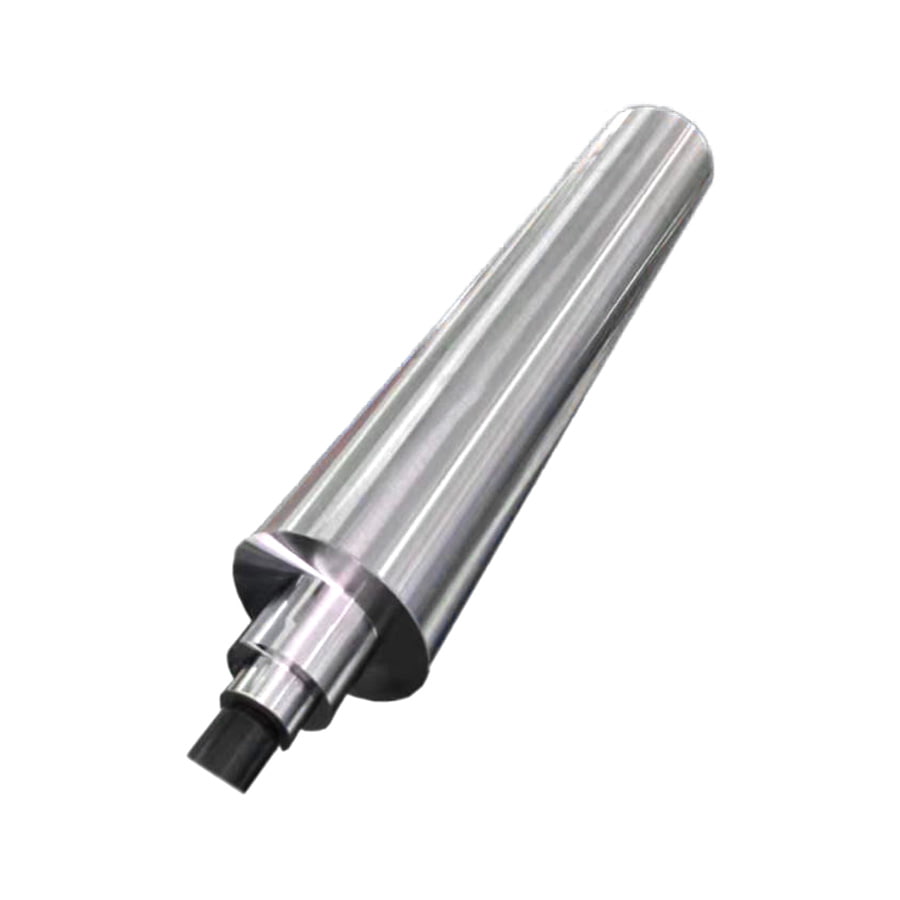

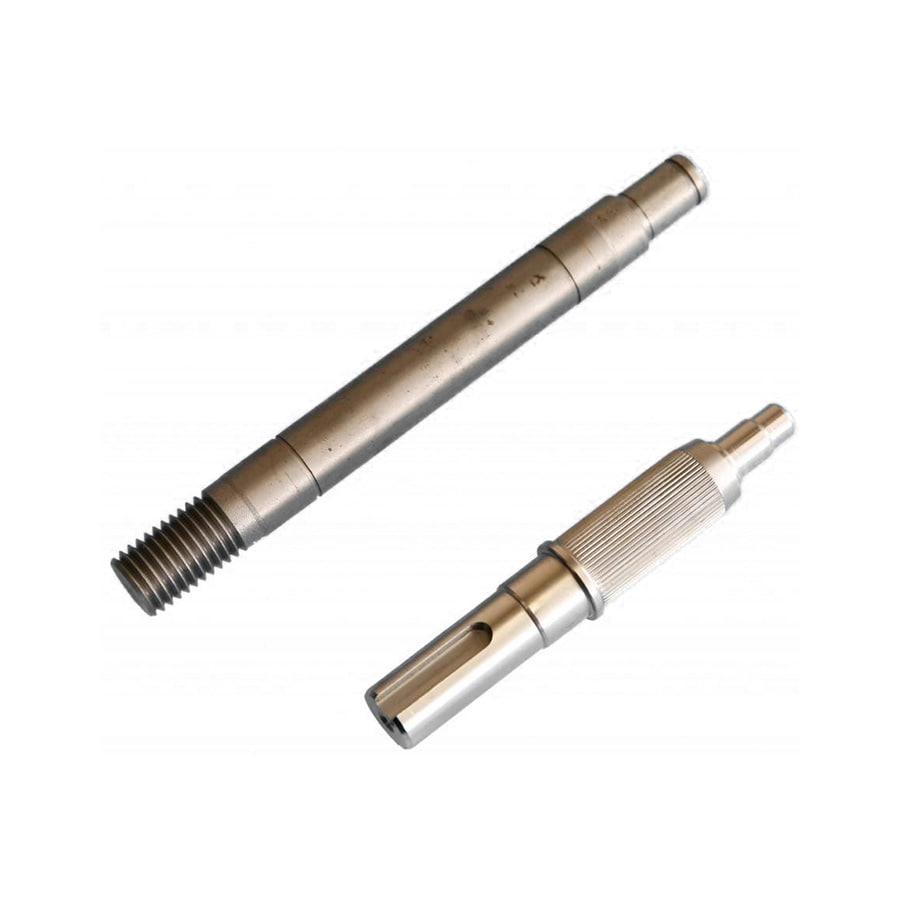

Founded in 2010, As China Crimp Ferrule Terminal Manufacturers and Crimp Ferrule Terminal Company. we are dedicated to manufacturing precision parts for automotive, industrial, and electrical applications. Backed by advanced manufacturing and R&D, we provide high-quality products and trusted solutions to our clients. We provide a wide selection of components to meet diverse industry needs: Electric Shafts: Drive shafts, coil motor shafts, servo motor shafts, water pump motor shafts, industrial motor shafts, and magnetic levitation motor shafts. Hardware: Precision parts for medical equipment, water heater coils, plumbing fittings, and various gas springs. Our commitment is to support our customers with reliable performance and long-term value.
