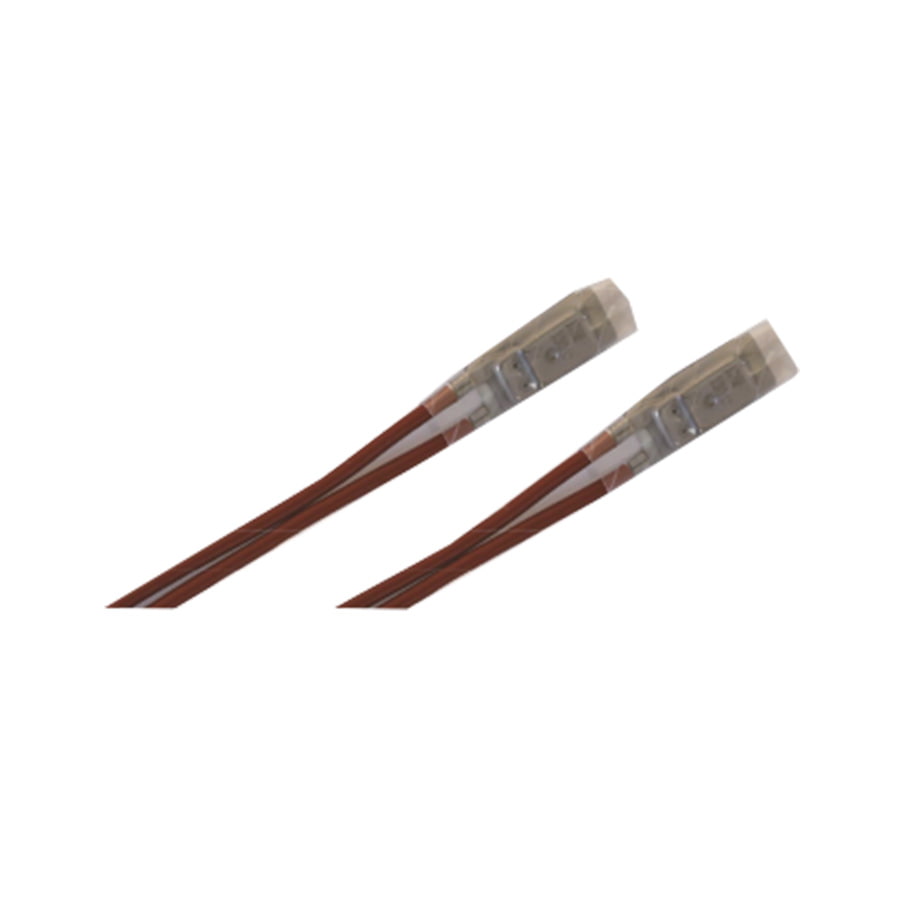

17AM Series Iron Shell Thermal Protector

Principle and Structure:

17AM-C series is a kind of thermal protector with over-temperature and over-current protection, and also the function of power-off reset time-delay. It has the characteristics of ultra-thin, small volume, large contact capacity, and quick tripping action.

Instructions and Applications:

It can prevent overheating with the following aspects

-Vacuum cleaner, shredder, mixer, mower

-Snow sweeper, demister

-Electric tool

PREV：No next product NEXT：18AM Series Thermal Overload Protection Thermal Protector

Parameter
Contact Us

Advantage:

Compact design with built-in PTC; long, stable, and reliable service life.

Each trip temperature is strictly calibrated and tested.

Bimetallic elements ensure fast and reliable snap action.

Available with riveted wires in various specifications and lengths according to customer requirements.

Dual protection functions, responding to both temperature and current.

Equipped with time-delay protection and automatic reset function.

Two wiring options: wire riveting or insert-type connection; lead configuration available in same or opposite directions.

Certified by UL, TUV, CQC, and compliant with EU RoHS environmental standards.

Select the Operating Temperature Range		45℃~180℃		Specifications available for every 5°C step
Electrical Capacity			Service Life
12A/250V-AC			≥ 10,000 times
18A/125V-AC
20A/36V-DC
Construction	Iron shell seal, with special temperature-sensitive insulation sheath, built-in PTC, and various terminal types
Dimensions (LWD)	20.68.64.1mm (Leads are customized according to customer requirements)
