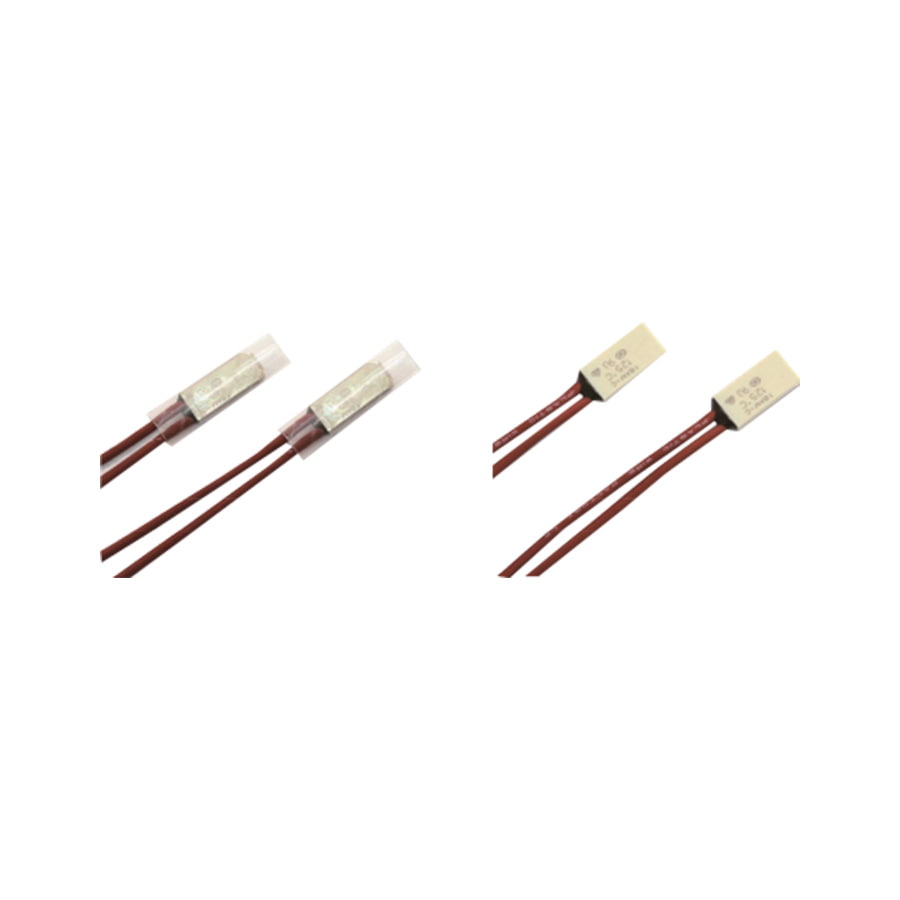

18AM Series Thermal Overload Protection Thermal Protector

Principle and Structure:

When the heat generated by the protected appliance is transmitted to the bimetal element and reaches its preset operating temperature, the bimetal element deforms, causing the contacts to open and interrupt the circuit.

When the temperature drops to the reset value, the bimetal element returns to its initial state, the contacts close, and the circuit resumes operation.

PREV：17AM Series Iron Shell Thermal Protector NEXT：19AM Series Bimetallic Thermal Protector

Parameter
Contact Us

Instructions and Applications:

18AM series thermal protector has the features of small volume, sensitive induction, excellent tightness, and precise temperature. It is mainly used for safety protection in small motors under 0.5 hp, transformers, rectifiers, batteries, and appliances.

Instructions for Model and Specification:

8A/24VDC 8A/125VAC 5A/250VAC

Temperature Specification:

Metal casing; insulation sleeve required in use

Classification	L	W	H	Remarks
18AM-B	16	6.8	8.1	Metal casing, with insulation sleeve added during use
18AM-B(Enhanced)	17	7.2	3.8	Metal casing, with insulation sleeve added during use
18AM-C	15	7.3	3.9	PBT plastic shell
18AM-D	18	8	4	PBT plastic shell
