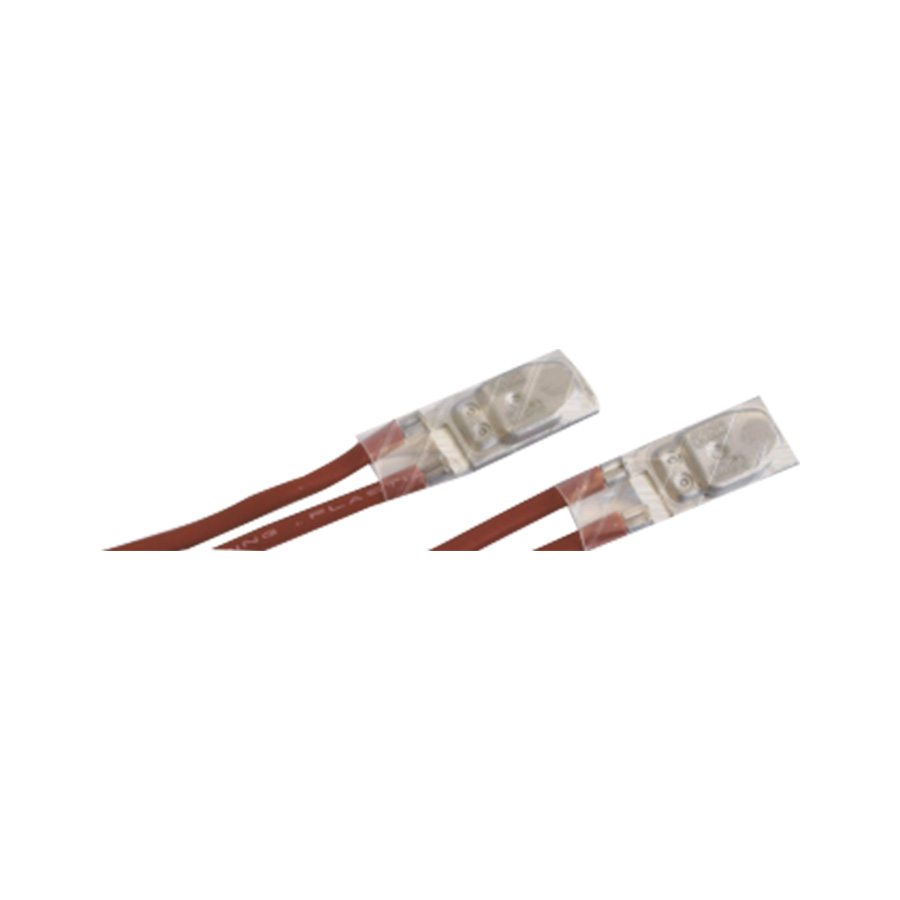

19AM Series Bimetallic Thermal Protector

Principle and Structure:

The 19AM series is a thermal protector with both over-temperature and over-current protection. Current flows through the terminals, bimetal disc, and contacts. When the protected device operates abnormally and the temperature or current rises excessively, the internal temperature reaches the protector’s trip point. The bimetal disc then deforms rapidly, opening the contacts and cutting off the circuit.

When the device cools down to a safe operating temperature, the bimetal disc resets, the contacts close automatically, and power is restored.

The 19AM protector features an ultra-thin profile, compact size, high contact capacity, and fast response.

PREV：18AM Series Thermal Overload Protection Thermal Protector NEXT：KW Series Automatic Reset Thermal Protector

Parameter
Contact Us

Instructions and Applications:

It can prevent overheating with the following aspects
-Motors
-Water pump, air compressor, cleaning machine
-Electronic ballasts for fluorescent lamps,
-HID Ballasts, lighting fixtures
-Electric heating pad, vehicle electric blanket and medical hot compress pad
-Glue machine, electric tool, charger, transformer
-Household appliances, heating appliances, etc.

Select the Operating Temperature Range		45℃~170℃		Specifications available for every 5°C step
Electrical Capacity			Service Life
6A/250V-AC			≥ 10,000 times
10A/125V-AC
10A/125V-AC
Construction	Iron shell seal, with special temperature-sensitive insulation sheath, three terminal types
Dimensions (LWD)	15.56.52.3mm (Lead wires can be customized according to customer requirements or processed at the factory)
